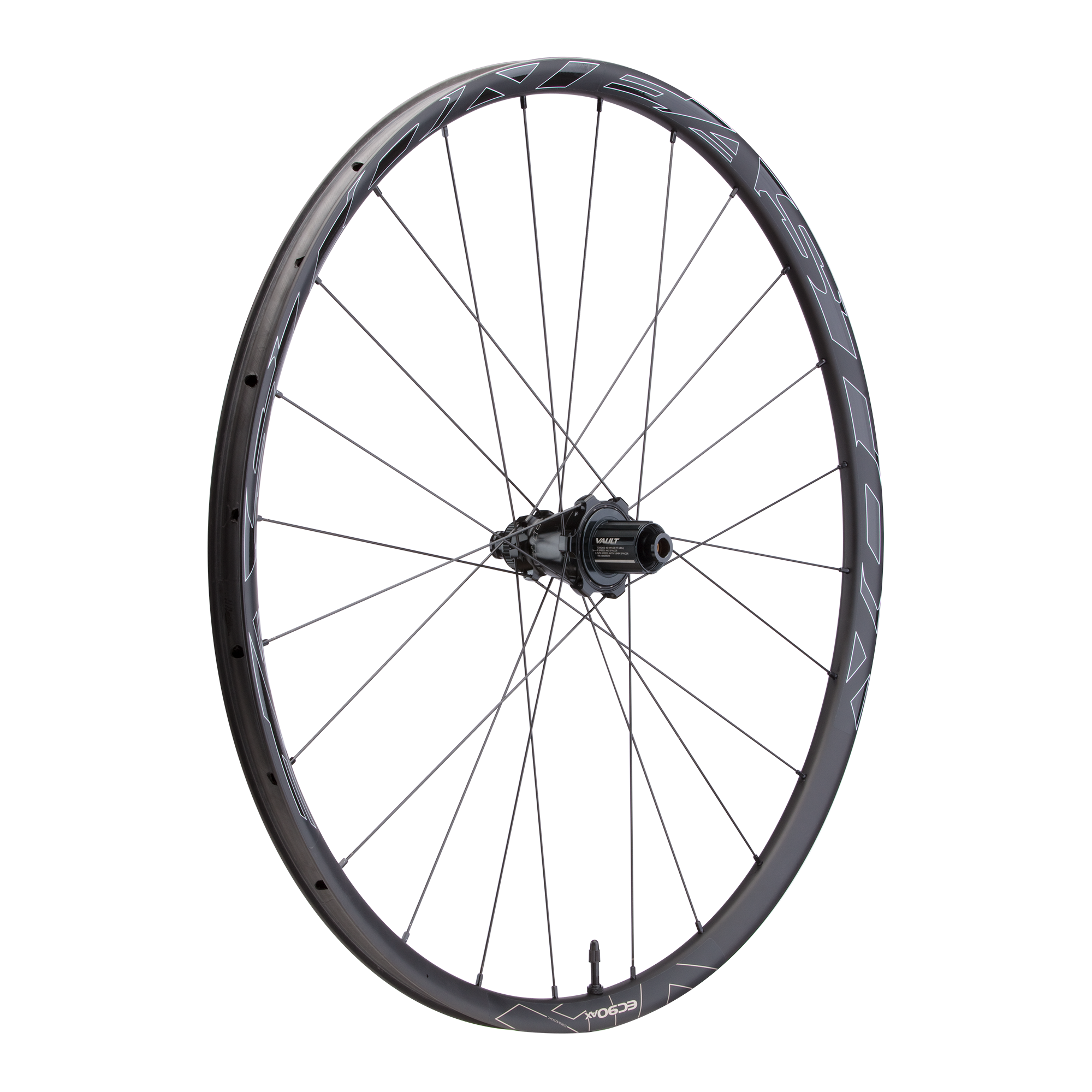

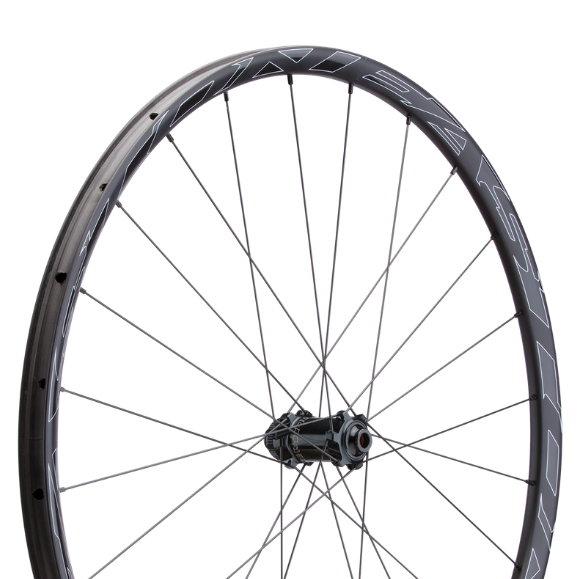

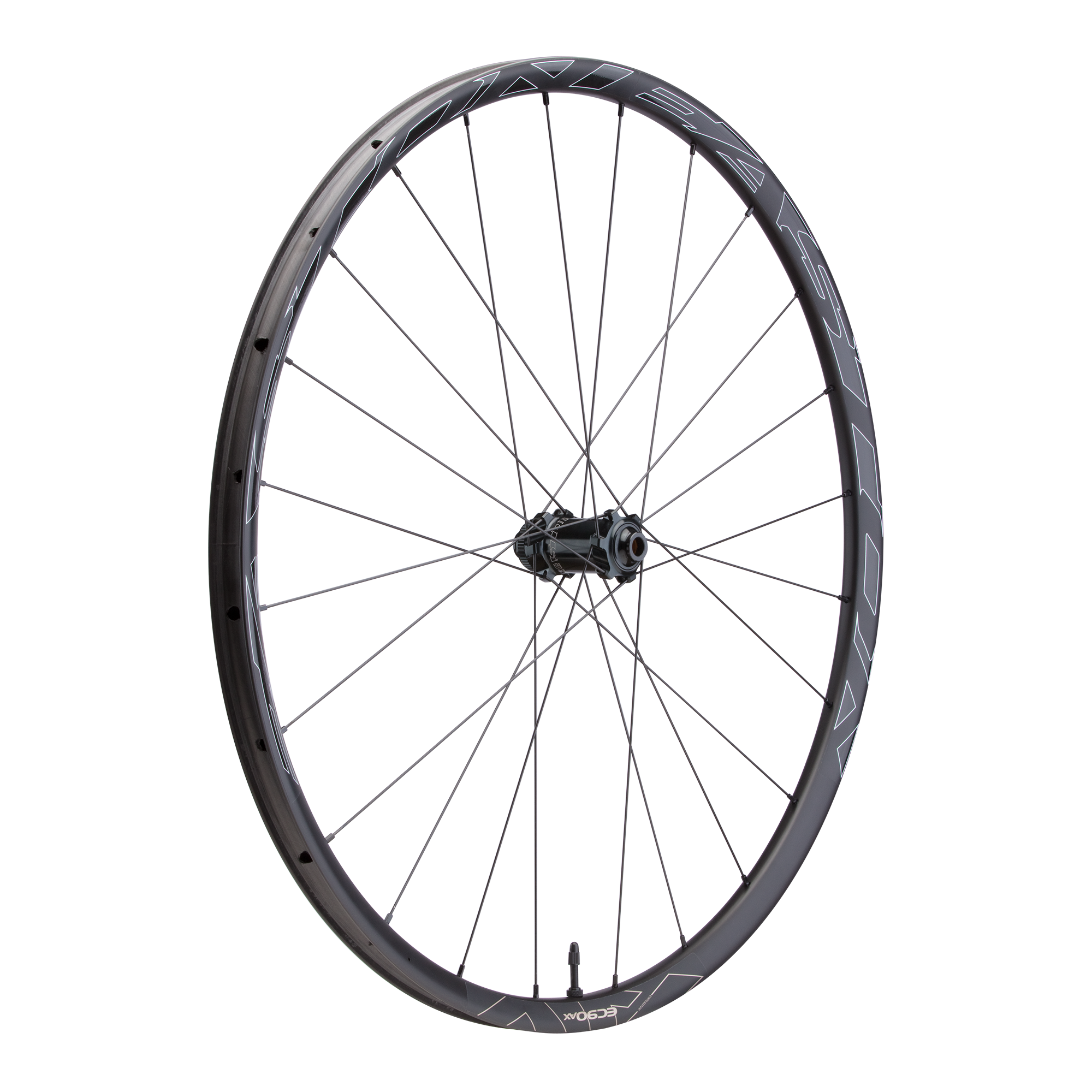

Our EC90 AX wheels use our EC90 carbon rims with 24 3x double butted Sapim straight pull spokes laced to our quick-engagement Vault hub and is backed by our Carbon Confidence guarantee. Like all our Vault hub wheels, these feature tool-free endcaps, and 10, 11 and 12 speed compatibility with Shimano, Campagnolo and SRAM.
Wide, 24mm internal rims are optimized for gravel tires 35mm and larger, giving you a more confident tire stance for control on the ground during your expansive adventure rides, single track forays and unrelenting gravel races.
Our Easton Overland team and SDG Muscle Monster team riders have put these wheels to the test, racing prototypes at DK200, with Amity Rockwell taking the DK Queen title and Amanda Nauman finishing 6th, while at Lost and Found 2019 Michael Van Den Ham came in 4th and Craig Richey took 6th.
EC90 AX are covered by our Carbon Confidence Guarantee
[Speci Tab]
WHEELSET WEIGHT - 1470 g
FINISH - GLOSS CARBON / VINYL DECALS
TYPE - TUBELESS READY CARBON CLINCHER
RIM MATERIAL - CARBON
RIM DEPTH - 21MM
INTERNAL RIM WIDTH - 24MM
EXTERNAL RIM WIDTH - 31MM
SPOKES - SAPIM STRAIGHT-PULL DOUBLE BUTTED
SPOKE PATTERN - 24 / 3X
BRAKING SURFACE - DISC - CENTER LOCK ROTOR MOUNT
NIPPLE TYPE - DT EXTERNAL ALLOY - EASTON VAULT CENTER-LOCK 12X100 / 12X142*
ENGAGEMENT - 60 POINT, 6°
BEARING TYPE- SEALED CARTRIDGE BEARINGS
[/Speci Tab]
[Manuals Tab]
- Rim Pressure Guide
- Easton Cycling Drift Kit: Vault Hubs
- Vault Hub Diagram - Front, 516
- Vault Hub Diagram - Rear, 525
- Vault Hub Codes
